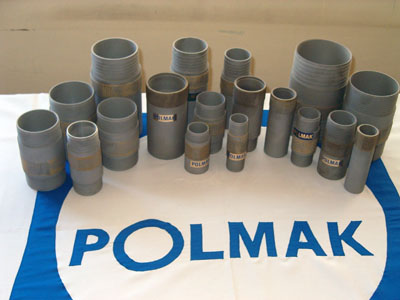

Reaming Shell maintains stable hole diameter while protecting the life of bit and the core barrel. The outside diameter of Reaming Shells are always a small fraction larger than the bit so that it can protect the core barrel and provide a better clearance with the well bore.

Polmak manufactures three different types of reaming shells according to the drilling operation carried on.

1. Blank Reaming Shell

2. TC Reinforced Reaming Shell

3. Diamond Reaming Shell

All Reaming Shells are manufactured from alloy steel to provide a long life.

NOTE: Tapered reaming shells are manufactured upon request.

DCDMA SERIE DIAMOND REAMING SHELLS
SIZE	CARAT WEIGHT
SIZE	15 – 25 Spc
EWG , EWM	5-7
AWG , AWM, AQ	6-8
BWG , BWM, BQ	8-10
HWG, HQ	12-15
NWG, NWM, NQ	12-15

METRIC SERIE DIAMOND REAMING SHELLS
SIZE	CARAT WEIGHT
SIZE	15 – 25 Spc
T – 36 ,B – 36 Type	5-7
T – 46 ,B – 46 Type	6-8
T – 56 ,B – 56 Type	8-10
T – 66 ,B – 66 Type	9-11
T – 76 ,B – 76 Type	10-12
T–101,B – 101 Type	12-15
K3 – 86 Type	11-13
K3 – 101 Type	11-15
K3 – 116 Type	14-17
K3 – 131 Type	16-20
T6 – 76 Type	10-12
T6 – 86 Type	11-13
T6 – 101 Type	12-15
T6 – 116 Type	14-17
T6S – 86 Type	11-13
T6S – 101 Type	12-15

REAMING SHELLS

T – 36 ,B – 36 Type

T – 46 ,B – 46 Type

T – 56 ,B – 56 Type

T – 66 ,B – 66 Type

T – 76 ,B – 76 Type

T–101,B – 101 Type

K3 – 86 Type

K3 – 101 Type

K3 – 116 Type

K3 – 131 Type

T6 – 76 Type

T6 – 86 Type

T6 – 101 Type

T6 – 116 Type

T6S – 86 Type

T6S – 101 Type
