   DCDMA SERIE DOUBLE  TUBE CORE BARRELS

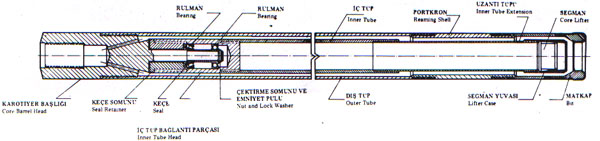

M series double tube core barrels was developed as a solution to the ever present problem of recovering a high percentage of  core when drilling badly fractured or broken stratas or soft and friable material that is easily eroded by the circulating fluid. Mud or water can be used with this core barrel while drilling. It has more sturdy design when compared to the metric series core barrels.

SPECIFICATIONS

SIZE OF CORE BARREL (mm)



EWM

AWM

BWM

NWM

O.D.of Outer Tube

36,50

46,20

58,10

73,90

I.D.of Outer Tube

30,20

38,80

50,70

66,60

O.D.of Inner Tube

27,00

35,80

47,80

63,60

I.D.of Inner Tube

23,80

31,60

43,50

57,00

CORE DIAMETER

21,40

30,10

42,00

54,70

HOLE DIAMETER

38,00

48,30

60,20

75,90



DESCRIPTION

SIZE OF CORE BARREL

EWM

AWM

BWM

NWM

lb.

kgs.

lb.

kgs.

lb.

kgs.

lb.

kgs.

Core Barrel Assembly (3,00 m)   *

 22,93

 10,40

 44,98

 20,40

 61,74

 28,00

 94,82

 43,00

Core Barrel Assembly (1,50 m)   *

 14,11

 6,40

 24,92

 11,30

 37,49

 17,00

 57,33

 26,00

Core Barrel Head

 1,98

 0,90

 4,85

 2,20

 9,04

 4,10

 16,10

 7,30

Outer Tube (3,00 m)

 13,45

 6,10

 26,02

 11,80

 33,96

 15,40

 44,10

 20,00

Outer Tube (1,50 m)

 7,94

 3,60

 12,57

 5,70

 16,98

 7,70

 22,05

 10,00

Inner Tube (3,00 m)

 6,39

 2,90

 11,47

 5,20

 14,99

 6,80

 31,97

 14,50

Inner Tube (1,50 m)

 3,09

 1,40

 5,51

 2,50

 7,94

 3,60

 14,99

 6,80

Blank Reaming Shell

 0,44

 0,20

 0,88

 0,40

 0,88

 0,40

 1,54

 0,70

Core Lifter Case

 0,22

 0,10

 0,22

 0,10

 0,44

 0,20

 0,88

 0,40

Core Lifter

 0,22

 0,10

 0,22

 0,10

 0,22

 0,10

 0,22

 0,10



*  Core Barrel Assemblies include the Core Barrel Head , Inner and Outer Tubes , Blank Reaming Shell , Core Lifter Case and Core Lifter.
